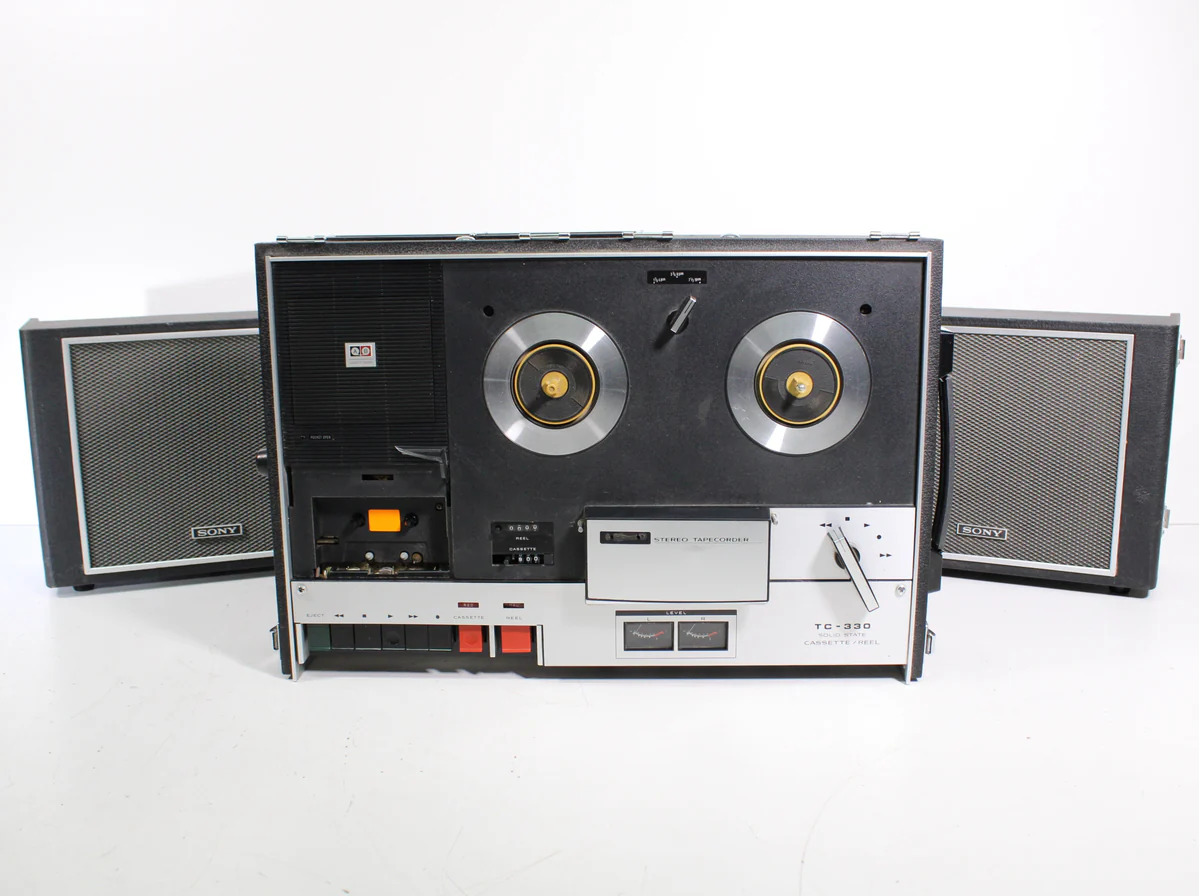

The Sony TC-330 is a stereo tape recorder that duals as a reel-to-reel deck and cassette player. It’s a quarter track (four-track, 2-channel stereo) reel to reel, which is useful if you want to flip the reels over to double the running time. The TC-3030 even has detachable speakers; these two bookshelf-type speakers combine to form the carrying case lid. This system currently has no sound, but for the right person who wants to give this amazing system the service and care it needs, it can become the perfect reel-to-reel and cassette player system!
CONDITION
As is, not working, for parts or repair.
At Spencertified, we are experts on a wide variety of electronics. Unfortunately, we do not have the time or resources necessary to fix everything that comes in our shop. So, rather than throwing it away, we give our customers an opportunity to tinker.
Cosmetic Condition: Good
Functional Condition: Not Working. For parts. As-is. (Tape reels don’t spin, and there’s no sound. The cassette spins, but there is no sound.)
Technician notes: We do not have notes because we have not done a thorough inspection.
WHAT’S IN THE BOX?
Other information about the Sony TC 330
- Track system: 4-track, 2-channel, stereo/monaural system
- Reel size: up to 7 inch reel
- Tape speeds: 1 7⁄8 3 3⁄4 7 1⁄2 ips
- Wow and flutter: 0.12% (7 1⁄2 ips)
- Frequency response: 30Hz to 18kHz (7 1⁄2 ips)
- Signal to Noise Ratio: 50dB
- Input: 60mV (line), 0.19mV (mic)
- Output: 0.44V (line)
- Output power: 5 watts
- Speakers: 2 x 130mm cones
- Semiconductors: 25 x transistors, 5 x diodes
DIMENSIONS
INPUTS
OUTPUTS
- Line Out L/R x1 (side)
- Lid Speakers L/R x1 (side)
- AC Outlets x1 (side)
