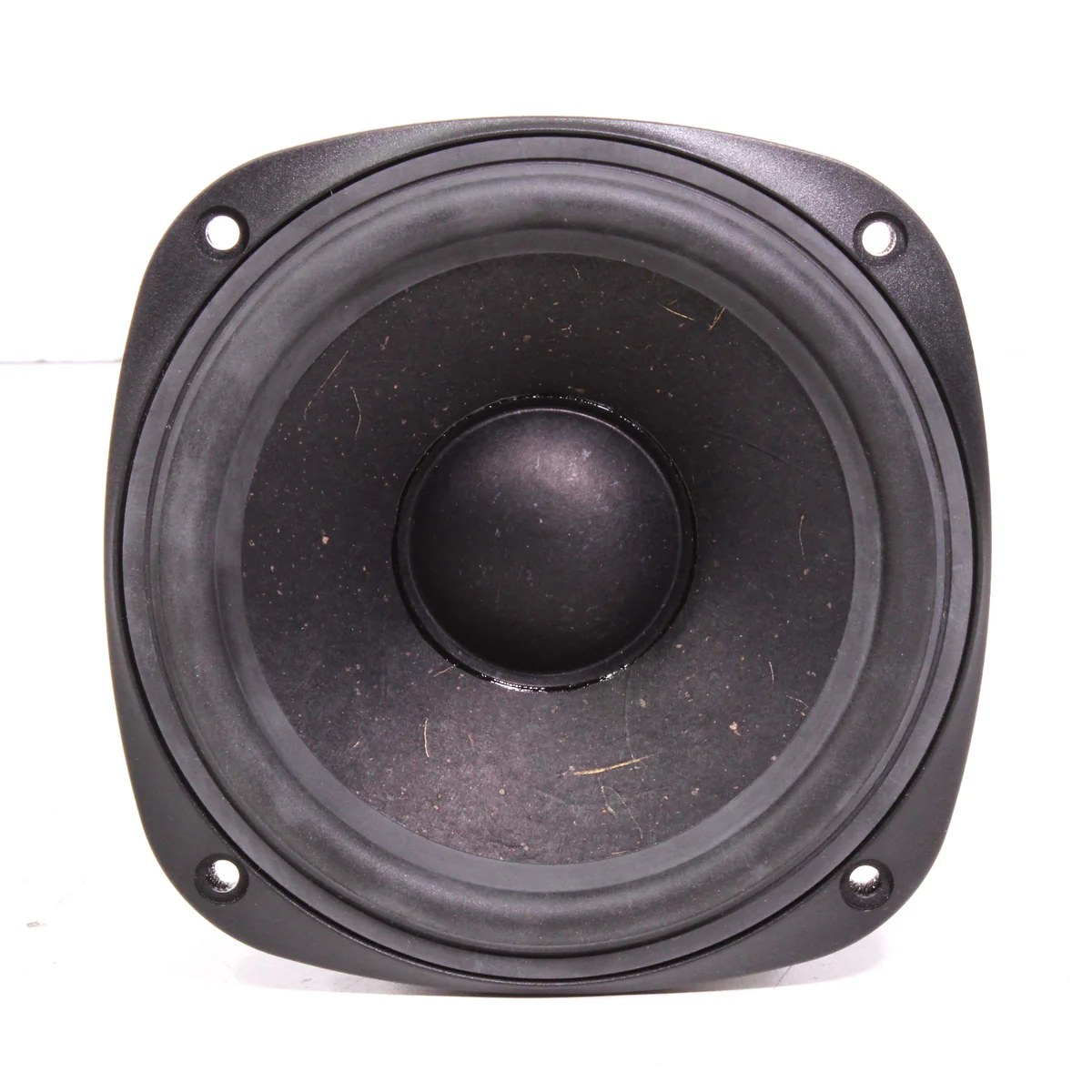

The SB Acoustics SB13PFC25-04 is the perfect replacement driver for your home audio speaker! It’s a 5-inch midwoofer driver rated at 4 ohms. It features a vented reinforced plastic chassis, a soft low damping rubber surround for improved transient response, and a vented coil former for low compression. It’s an excellent speaker for DIY designs or as a replacement driver for your broken stereo speaker.
OTHER PART NUMBERS ASSOCIATED WITH IT INCLUDE…
- SD17219
- SB13PFC25-4
- SB13PFC2504
CONDITION
SPENCERTIFIED– Fully certified by Spencer
Refurbished and SPENCERTIFIED
Every function has been confirmed 100% working. All speaker parts have been cleaned. The speaker frame, dust cap, cone, and surround are in excellent condition.
Cosmetic Condition: Very Good.
Functional Condition: Works Like New.
WHAT’S IN THE BOX?
- SB Acoustics SD17219 5″ Midrange Speaker Driver Replacement Part
Other information about the SB13PFC25-04
- Vented reinforced plastic chassis
- Proprietary cone material with natural fibers made in-house
- Soft low damping rubber surround for improved transient response
- Optimized motor system
- Vented coil former for low compression
- Non-resonant long life lead wires
- Nominal Impedance 4 Ω
- DC resistance, Re 3.2 Ω
- Voice coil inductance, Le 0.56 mH
- Effective piston area, Sd 87 cm2
- Voice coil diameter 25.4 mm
- Voice coil height 14 mm
- Air gap height 5 mm
- Linear coil travel (p-p) 9 mm
- Magnetic flux density 1.06 T
- Magnet weight 0.36 kg
- Rated power handling: 40 W
DIMENSIONS
- Overall Outside Diameter: 5.25″
- Overall Depth: 2.88″
- Hole to Hole: 5.5″
- No. of Mounting Holes: 4
MANUFACTURER
- Made in Indonesia
