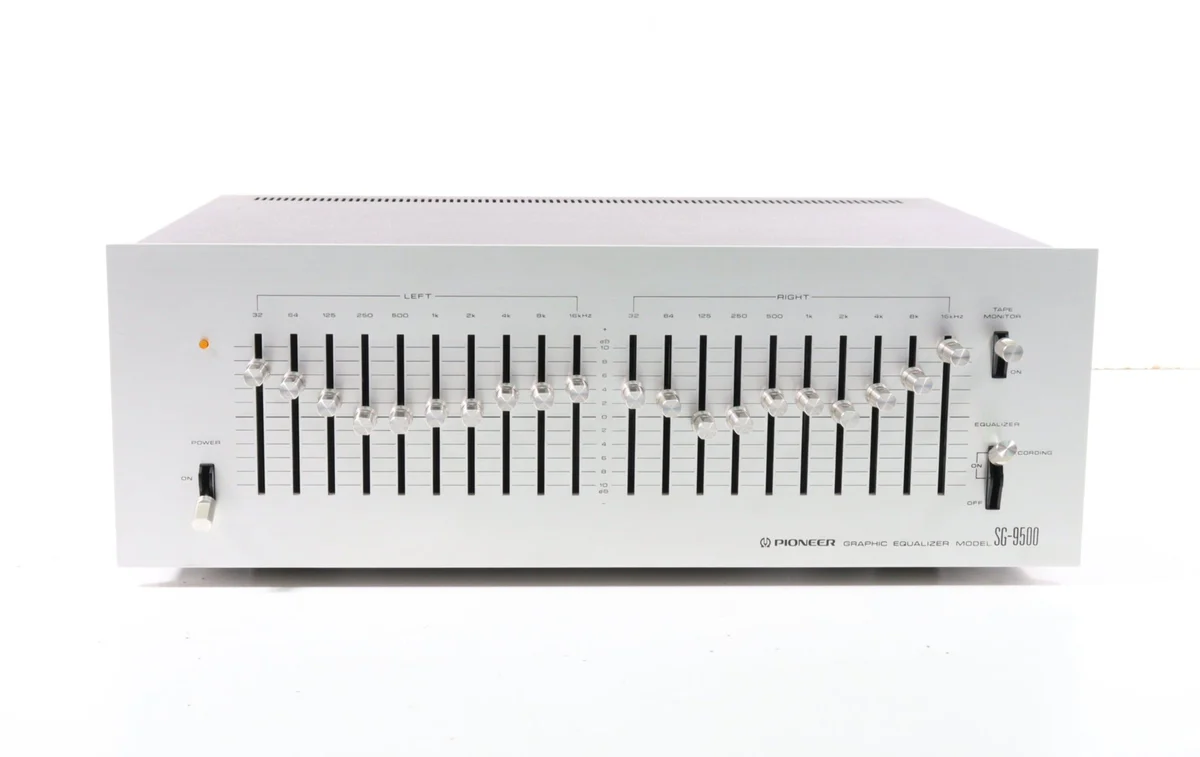

Pioneer’s SG-9500 is a piece of incredibly versatile audio equipment: not only can it be used for the equalization of a simple program source, it can also provide precise tone corrections for playback components and speakers. Plus, musical program sources can be altered, modified, and improved to suit your personal taste!
CONDITION
SPENCERTIFIED– Fully certified by Spencer
Refurbished and SPENCERTIFIED
Every function has been confirmed 100% working. We have cleaned it inside and out and replaced any worn parts. A recap was performed if necessary. All pots, knobs, connectors and boards have been cleaned with CRC cleaner.
Cosmetic Condition: Very Good.
Functional Condition: Works Like New.
WHAT’S IN THE BOX?
- Pioneer SG-9500 Vintage Graphic Equalizer with Original Box
- Audio Cables
Other information about the Pioneer SG-9500
- Frequency response: 5Hz to 70kHz
- Frequency Bands: 32, 64, 125, 500, 1K, 2K, 4K, 8K, 16KHz
- Signal to Noise Ratio: 90dB
- Total harmonic distortion: 0.04%
- Output Level: 1V (6V max)
- Gain: ± 0dB
- Control Range: ± 10dB
- Vintage silver faced design
DIMENSIONS
- 16.54″ x 13.43″ x 5.9″ (Length x Width x Height)’
- Weight: 15.3 lbs
INPUTS
- Audio In L/R x1 (back)
- Tape L/R x1 (back)
OUTPUTS
- Audio Out L/R x1 (back)
- Tape L/R x1 (back)
- AC Outlet x1 (back)
MANUFACTURE DATE and PLACE
- MFD. 1978
- Made in Japan
