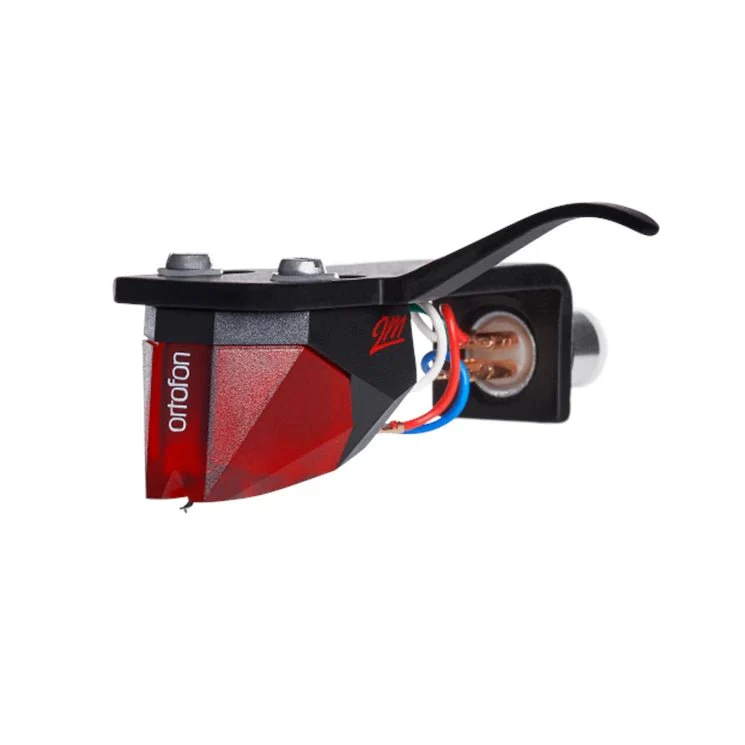

Ortofon 2M Red: Your Entry to High-Fidelity Audio
The Ortofon 2M Red Premounted phono cartridge makes the vinyl listening experience more accessible and engaging. With its straightforward installation on S-shaped tonearms, this entry-level cartridge from the renowned 2M series offers an open, dynamic sound with a slight touch of warmth, inviting you to step directly into the music.
Equipped with Ortofon’s innovative split pole pins technology and an Elliptical stylus, the 2M Red Premounted delivers precise sound reproduction and a high level of sonic accuracy. This makes it a perfect choice for those seeking an easy upgrade to their vinyl system without compromising on quality.
Key Features
- Elliptical stylus for detailed audio reproduction
- Premounted on SH-4 headshell for easy installation
- 5.5 mV output voltage for dynamic sound quality
- Split pole pins for accurate sound reproduction
- Designed and crafted in Denmark, ensuring exceptional quality
Technical Specifications
| Specification | Details |
|---|---|
| Channel Balance at 1 kHz | 1.5 dB |
| Output Voltage at 1 kHz, 5cm/sec | 5.5 mV |
| Channel Separation at 1 kHz | 22 dB |
| Channel Separation at 15 kHz | 15 dB |
| Frequency Response | 20 Hz – 20 kHz, +3 / -1 dB |
| Tracking Ability at 315Hz at Recommended Tracking Force | 70 µm |
| Compliance, Dynamic, Lateral | 20 µm/mN |
| Stylus Type | Elliptical |
| Stylus Tip Radius | r/R 8/18 µm |
| Tracking Force Range | 1.6-2.0 g (16-20 mN) |
| Recommended Tracking Force | 1.8 g (18 mN) |
| Tracking Angle | 20° |
| Internal Impedance, DC Resistance | 1.3 kOhm |
| Cartridge Color | Black/Red |
| Cartridge Weight | 7.2 g |
| Premounted Cartridge Weight | 16.7 g |
| Recommended Load Resistance | 47 kOhm |
| Internal Inductance | 700 mH |
| Recommended Load Capacitance | 150-300 pF |
The Ortofon 2M Red Premounted is an exceptional choice for vinyl enthusiasts looking to easily enhance their audio system. Its ease of installation, combined with Ortofon’s signature audio quality, makes it an attractive option for both newcomers and seasoned audiophiles.
