Item Details:

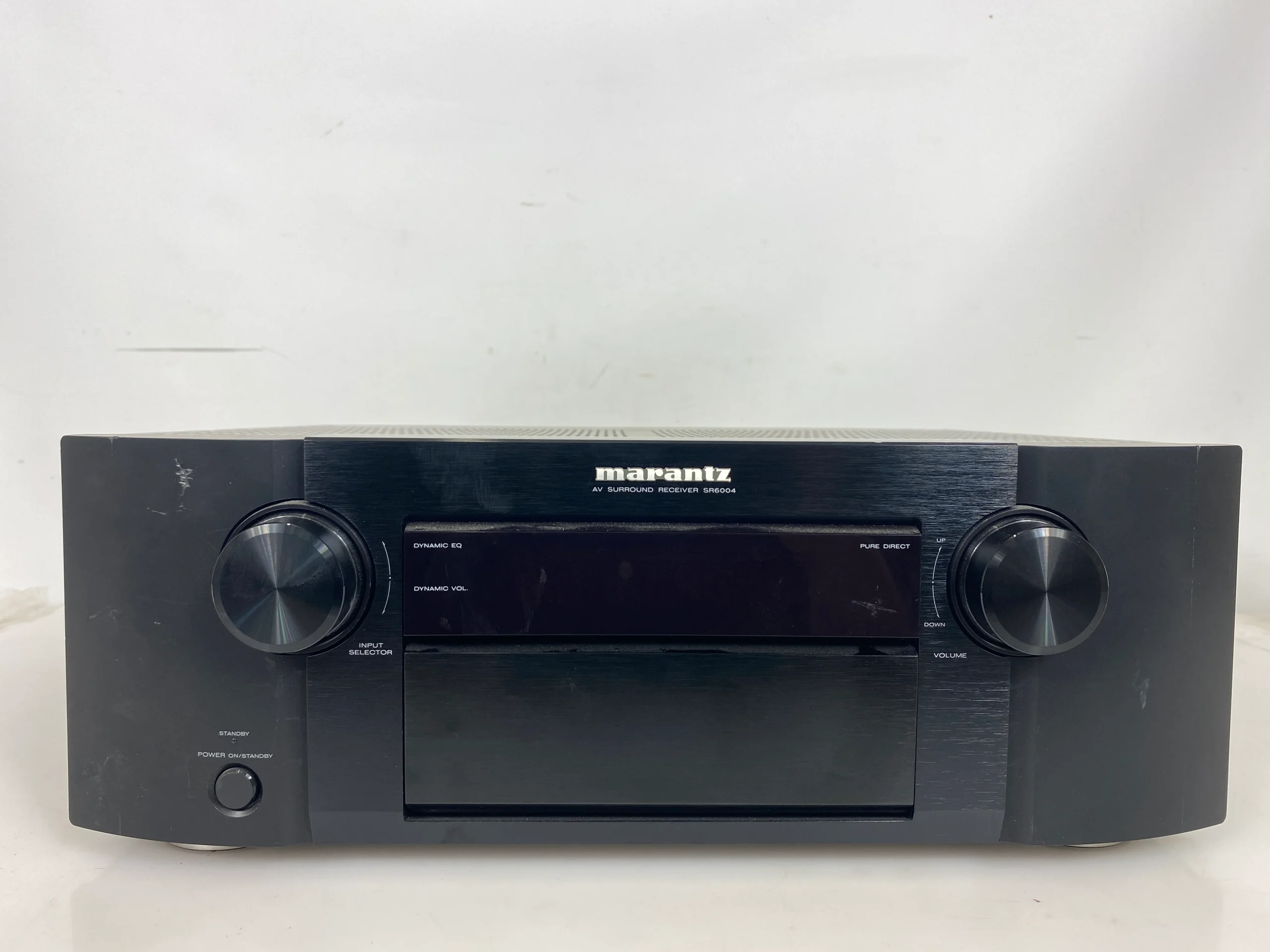

- Brand: Marantz
- Type: Surround Sound Receiver
- Model: SR6004
- HDMI In: 4
- Component In: 2
- S-Video In: 1 (Front)
- Composite In: 5 (including Front)
- HDMI Out: 2
- Component Out: 1
- S-Video Out: 2
- Composite Out: 2 (including Monitor Out)
- Analog L&R In: max 8 (includes L/R of Front AUX, L/R of 7.1 ch Input)
- Analog L&R Out: 2
- Digital Optical In: 2
- Digital Coaxial In: 2
- Digital Optical Out: 1 (Common for Multi Zone B / 2nd Zone) Digital Out
- Digital Coaxial Out: 1
- USB Input for Audio: 1 (Front)
- Pre-Amplifier Out: 7.1
- Multi-Channel In: 7.1
- Multi-Room Audio Out: L&R for Main Zone, 2 (2nd Zone), Digital Out for Multi Zone B (2nd Zone)
- Multi-Room Video Out: Component Output Assignable
- Multi-Room Speaker Out: •
- Speaker A/B: Speaker A, B and C
- RS-232C: 1
- DC Triggers: Out x1
- D-Bus Remote (RC-5) In/Out: 1 / 1
- Flasher In/IR Receiver In/Emitter Out: 1 / 0 / 0
- Front Panel AV Inputs: S-Video / Video / Analog L&R / Digital Optical
- Headphone Out: 1
- AC Outlets (Switched / Unswitched): 1 / 1
- Power Output (8 Ohm): 110W x7 (20Hz – 20kHz)
- S/N Ratio: 105dB (Analog Input, Pure Direct)
- Frequency Response (Analog In): 8Hz – 100kHz (+/- 3 dB, Pure Direct Mode)
- Frequency Response (Digital In): 8Hz – 45kHz (+/- 3 dB 96 kHz PCM Signal Input)
- FM Tuner Frequency Range: 87.5 – 108.0 MHz
- FM S/N Ratio (Mono/Stereo): 75 / 70 dB
- AM Tuner Frequency Range: 520 – 1710 kHz
- AM S/N Ratio: 50 dB
- Video Frequency Response (Component): 5Hz – 80MHz (-1 dB)
- Video Frequency Response (Composite, S-Video): 5Hz – 8MHz (-1 dB)
- Signal to Noise: 60 dB
- Front Panel: Aluminum / Glass-reinforced resin
- Power Requirement: AC 120V 60Hz
- Power Consumption:
- Max: 650W
Dimension:
- 17.3″ Width
- 15.4″ Depth
- 6.3″ Height
Condition:
- Item is used and in good condition
- Item may have marks and/or scuffs from previous use
- Item has been tested to be fully functional
