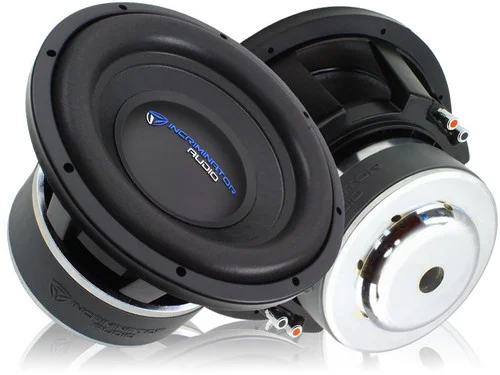

The original Lethal Injection was known for being one of the loudest, best sounding, bang for the buck woofers available in 2003. Ten years later, the 2017 model Lethal Injection is nothing short of the original. In fact, the new LI surpasses the original in every way. Every part has been upgraded to be stronger, better sounding, and LOUDER than ever before!! As customer’s power demands have grown so has the Lethal, now officially rated at 1000 Watts RMS. To handle that extra power we upgraded the coil and added additional ½” in winding width, upgraded to a slightly stiffer suspension, and increased the motor to a 7.25” diameter for extra motor strength to offset that new rugged suspension, as well as increased motor gap vent cooling with Air-Driven Cooling (ADC) and supplemental rear side vents. The finishing touch is the new embossed Incriminator Audio logo on the dustcap sporting nothing more than blue and silver. Available in Dual 2 and Dual 4 standard as well a 10”, 12”, 15” and now 18” mtyle type=”text/css”> table.tableizer-table { font-size: 12px; border: 1px solid CCC; font-family: Arial, Helvetica, ; } .tableizer-table td { padding: 4px; margin: 3px; border: 1px solid CCC; } .tableizer-table th { background-color: 104E8B; color: FFF; font-weight: bold; }
BUILT TO ORDER – Build time is 20-25 business days.
| Specifications | |
|---|---|
| Driver | 10 Inch |
| FS | 33 Hz |
| Re | 4Ω Series |
| Qms | 4.33 |
| Qes | 0.42 |
| Qts | 0.39 |
| Mms | 210 g |
| Cms | 0.14 mm/N |
| Sd | 320 cm² |
| Vas | 14 L |
| Spl | 85.4 dB |
| BL | 16.6 |
| X-max | 23 mm |
| Sub Diameter | 10.” |
| Mounting | 9.25″ |
| Depth | 6.12″ |
| Displacement | .12 Cu. Ft. |
| Power | 1000 RMS |
| Enclosure Specifications | |||
|---|---|---|---|
| Minimum Volume | Recommended Volume | Maximum Volume | |
| Sealed | 0.60ft^3 | 0.80ft^3 | 1.00ft^3 |
| Ported | 1.00ft^3 | 1.25ft^3 | 1.500ft^3 |
| Port Opening | 14in^2 (1.35″ x 10.50″) | 18in^2 (1.70″ x 10.50″) | 21in^2 (2.00″ x 10.50″) |
| Port Length | 28.0″ | 27.75″ | 27.00″ |
| Port Tuning | 35hz | 35hz | 35hz |
| Port Displacement | 0.22ft^3 | 0.29ft^3 | 0.33ft^3 |
| Sub Displacement | 0.12ft^3 | 0.12ft^3 | 0.12ft^3 |
| Subsonic Filter | 32hz – Setting | 32hz – Setting | 32hz – Setting |
| Low Pass Filter | 80hz – Setting | 80hz – Setting | 80hz – Setting |
