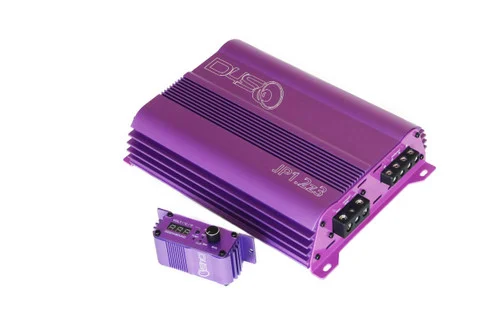

DOWN4SOUND JP1.2z3 PURPLE | 1200W RMS – 4 2 1 ANY-OHM Amplifier
Immerse yourself in the world of powerful car audio with the DOWN4SOUND JP1.2z3 amplifier, now available in captivating purple. Engineered for versatility and performance, this amplifier is designed to handle various impedance configurations, from 4 ohms to 1 ohm.
Product Features:
- Strappable Digital Monoblock Amplifier
- Stable into 1 Ohm Mono Load
- High-Speed MOSFET Power Supply
- Variable Low Pass Filter
- Variable Subsonic Filter
- Variable Bass Boost
- 4-Way Protection Circuits (Thermal, High & Low Voltage, Speaker Short, and DC)
- Bass Remote with Voltmeter and Temperature Display
- High Purity Copper Printed Circuit Board
- 4 Gauge Power/Ground Terminals
Specifications:
- Output Power:
- 1200W x 1 @ 14.4V (1 Ohm)
- 1200W x 1 @ 14.4V (2 Ohm)
- 1200W x 1 @ 14.4V (4 Ohm)
- 2400W x 1 Strapped
- Frequency Response: 11Hz – 239Hz
- Variable Filters:
- Low Pass Filter: 35Hz – 250Hz
- Subsonic Filter: 10Hz – 50Hz
- Bass Boost: 0 – 9 dB
- Input Sensitivity: 6V – 0.2V
- Signal to Noise Ratio: 92dB
- Total Harmonic Distortion (THD): Less than 0.1% @ 4 Ohms
- Voltage Range: 9V – 15.5V
- Fuse Ratings:
- 190A (single)
- 380A (strapped)
- Dimensions: 9.05”L x 7.48”W x 2.24”H
