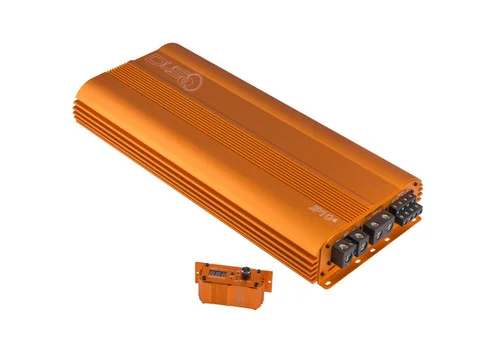

Down4Sound JP 10.4 ORANGE Amplifier: 6000W 4 Channel Amplifier
Experience the ultimate sound revolution with the Down4Sound JP 10.4 ORANGE. This 4 Channel Car Amplifier is a powerhouse of audio performance, delivering a staggering 6000W output. Crafted for those who seek the pinnacle of car audio systems, the JP 10.4 ORANGE is a fusion of immense power and advanced technology. It features a SNAZZY bass knob, bandpassable crossover, and true Tiffany RCA connections, ensuring your audio is not just loud, but crystal clear and rich in quality. It’s more than an amplifier; it’s an audio masterpiece.
Key Features:
- Exceptional Power Output: Delivers 1000W per channel RMS at 4 OHM, positioning it among the elite amplifiers in its class.
- Bass Control: Comes with a SNAZZY bass knob for precise bass level adjustments.
- Premium Connections: Equipped with true Tiffany RCA connections for optimal sound quality.
Enhanced Connectivity:
- Dual 0GA Power and Ground Inputs: For a stable and robust power supply.
- Speaker Outputs: Supports up to 4GA speaker wires, ensuring compatibility with a wide range of speakers.
Technical Specifications:
- RMS Power Ratings:
- 2ohm: 1300W x 4
- 4ohms: 1000W x 4
- 4ohms Bridged: 3300W
- Frequency Response: 10Hz – 21Khz
- Filters:
- High Pass: 20Hz – 800Hz (Multiply: x1, x10 ranging from 200Hz-8KHz)
- Low Pass: 50Hz – 800Hz (Multiply: x1, x10 ranging from 500Hz-8KHz)
- Input Sensitivity: 6V – 0.2V
- Signal to Noise Ratio: 90 Db
- T.H.D @ 4ohm: 0.1%
- Fuse Rating: 550A TOTAL
- Dimensions: 19.68″ L X 9.37″ W x 2.71″ H
Additional Features:
- Class D Technology: Ensures efficient and high-fidelity sound output.
- Plexi Backplate: Adds both durability and a sleek look.
- Internal High-Speed Fan: Keeps the amplifier cool during extended use.
- Origin: Made with pride in South Korea.
- Recommendation: For optimal performance with a stock radio, use a quality lineout converter or DSP.
Important: Electrical Upgrade Required for Warranty
To maximize the potential of this amplifier, an electrical upgrade is mandatory. Not upgrading will result in voiding the warranty. The required upgrades include:
- The Big 3: Crucial for managing the increased power demand.
- Upgraded Alternator: Ensures a steady and sufficient power supply.
- Reserve Battery(s): Provides consistent and reliable power.
The Down4Sound JP 10.4 ORANGE Amplifier isn’t just an amplifier; it’s a testament to superior sound engineering. Designed for audio enthusiasts, it offers unmatched power and precision, all in a vibrant orange finish.
